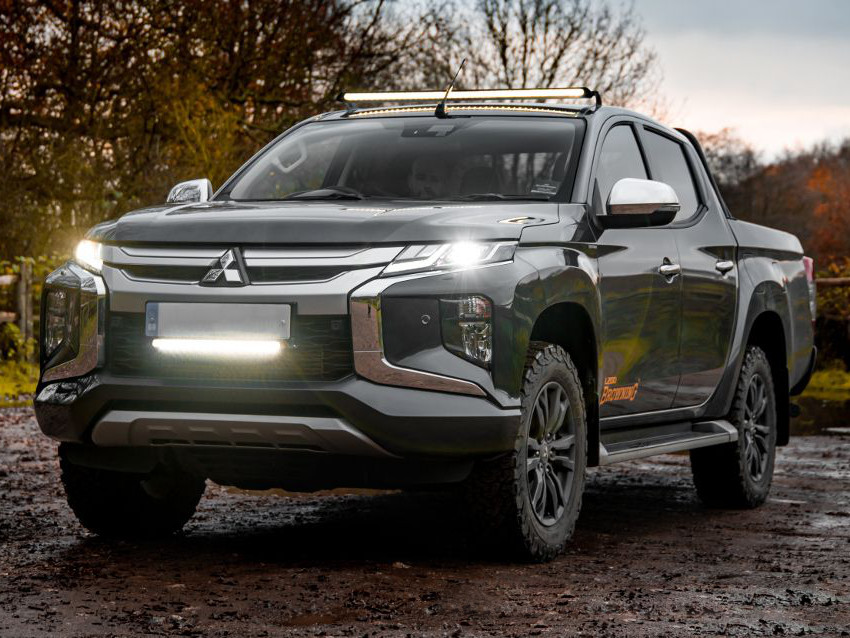

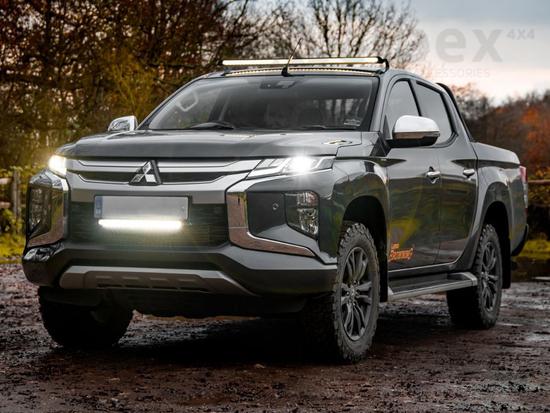

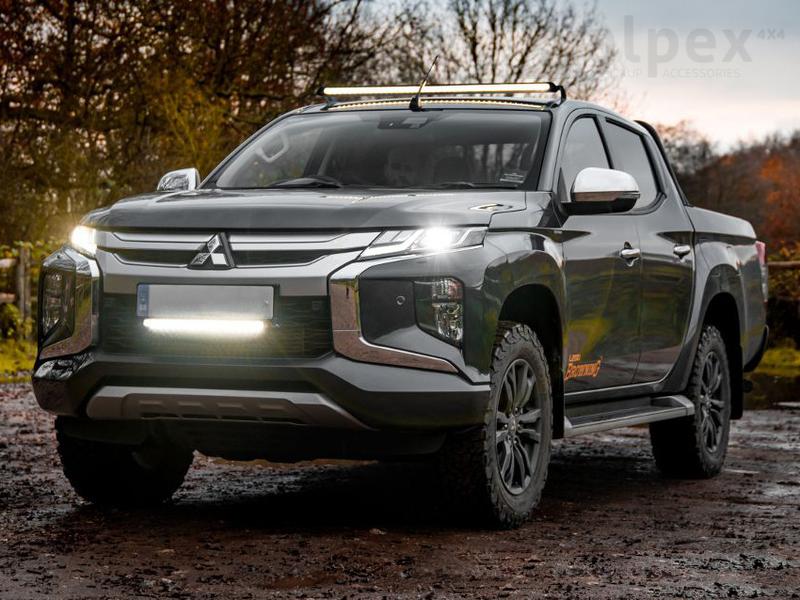

Lazer Lamps Grille LED light set, lower - Standard - L200 2015-

Click to enlarge
More pictures
Price:
439.00 € + VAT ( 557.53 € )
Manufacturer:
Model: GK-MI-0L18
• Vehicle integration kit for Lazer LED Spotlight installation
• Optimised for Mitsubishi L200 (2015+)
• Utilises Linear-18 High Performance LED Spotlight
• Available in either Standard or Elite grade
• Kit also includes bespoke mounting brackets and one-lamp wiring kit
• Fully road-legal
• 5-year warranty
• Made in Britain
Availability: In stock
Please choose

Description

Responsive imageThe Linear-18 is an ECE approved, road-legal versatile and economical auxiliary lighting solution which provides a significant upgrade when compared with any OE headlamps. The Linear-18 is ideal for passenger vehicles, where regulations allow for a single lamp to be connected direct to the standard high beams, and in particular where the lamp is being mounted low down at the front of the vehicle.

• Utilising highly efficient 3W LEDs, the Linear-18 delivers 6,750 lumens, and 1 Lux to 428m, impressive performance considering the lamp only consumes minimal power at 63W and with a current draw of 4.4Amps. The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-18 especially well suited to lower install positions, such as vehicle grille or number plate mounting.

• At 532mm in length, and with an aluminium body measuring just 40mm in height, and weighing a little over 1kg, this is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless 'unbreakable' polycarbonate front lens, with hardcoat lacquer, allows for improved aero performance and prevents build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come.

Specification

What's included:

• x1 Linear-18 LED Lamp
• x1 Mounting Kit (comprising 2x Brackets and fasteners)
• x1 One-Lamp Wiring Kit
• x1 Installation Instructions


Technical data:

Voltage Range 9-32V
LED Life 50,000 hours
Weight 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 6750 Lm
Number of High Output LEDs 18
Power Consumption 63 Watts
Current Draw (at 14.4V) 4.4 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 30
DIMENSIONS
Width 532 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
0.25 lx Line 855 metres
0.5 lx Line 605 metres
1 lx Line 428 metres
3 lx Line 247 metres
BEAM SPREAD
Horizontal 34 degree spread
Vertical 11 degree spread
