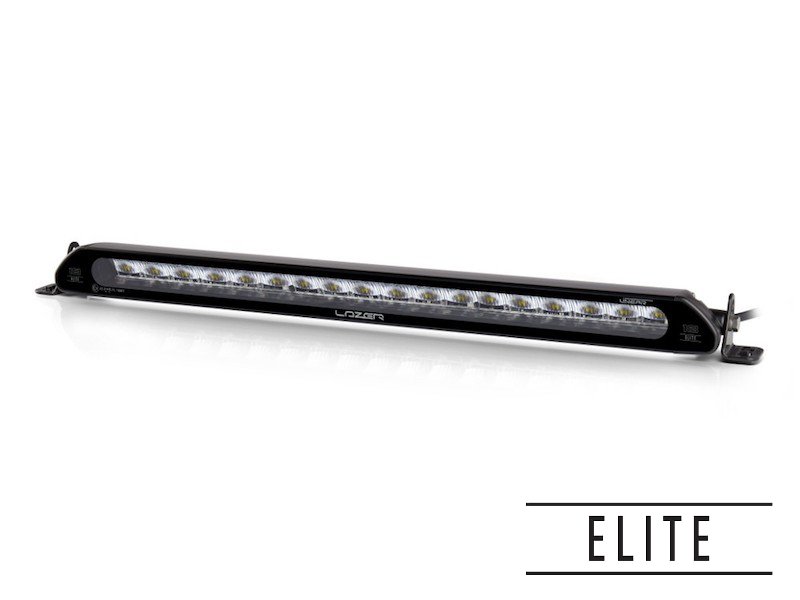

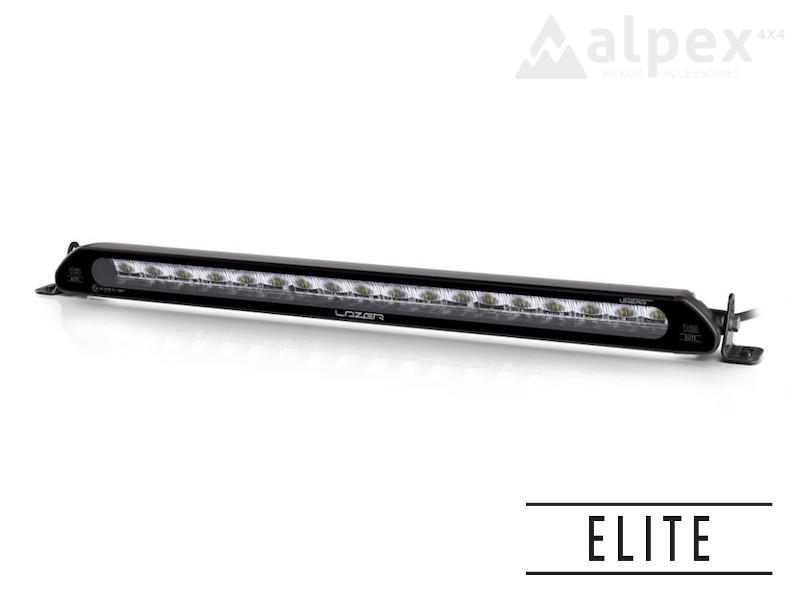

Lazer Lamps Linear-18 Elite LED light - wide-angle

519.00 € + VAT ( 659.13 € )
Availability: In stock
Manufacturer:
Model: 0L18-LNR-EL
• Combination of highly efficient 3W ‘premium bin’ LEDs
• Vacuum-metallised optics deliver wide spread of light
• Flexible mounting options - anti-theft mounting brackets included
• Sleek, low profile design facilitates installation
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens
• ECE approved for on-road use
• IP67 watertight
• 5 year warranty
• Supplied with male/female connectors (pre-wired)
• Designed & manufactured in Britain

Description

Responsive image• Quite simply the ultimate in low profile auxiliary LED lighting for the road and passenger car market. The Linear-18 Elite provides astonishing levels of light output, optimised for everyday road use, where either space is a limiting factor in regards any installation, or the preference is for a sleek, aerodynamic solution to get noticed more at night than during the day.

• The Linear-18 Elite utilises a combination of 36x highly efficient 3W LEDs, the same as used in our 2018 WRC lighting solutions, which together deliver 12,150 lumens, and 1 lux to 488m. ECE approved the lamp has an E-mark reference of 45, close to the permissible limit of the light intensity, which when considering the lamp weighs a little over 1kg and has power consumption of just 126W, measures just 532mm wide and 40mm in height, and it is impressive performance indeed for such a sleek, low-profile lamp.

• While this foundation of the Linear Elite’s lighting performance appears good on paper, it is through advances in our material and electronics design, that the Linear Elite really stands apart. In particular, the vacuum-metallised high-reflectivity optics carefully designed and engineered utilising the latest CAD design and light simulation software, that provide for superior light distribution when out on the road, where it really matters. A reduced vertical spread enables more light to be directed to the sides of the road, while the high intensity of the LEDs ensures enviable distance illumination.

• The clean design of the Linear range provides for a premium look and feel, that also ensures minimal impact on airflow around any installation. The supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners (included as standard), means the light will stay safe and secure.

• The Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens with hardcoat lacquer. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

Lazer Lamps Centre mount clamp - Linear

from 11.00 € + VAT (13.97 €)
In stock

Lazer Lamps Tube clamp pair - 76mm, black

45.00 € + VAT (57.15 €)
In stock

Lazer Lamps License plate mount

23.00 € + VAT (29.21 €)
In stock

Misutonida Tube clamp pair - black - 63mm

69.00 € + VAT (87.63 €)
Production time 4 weeks

Lazer Lamps Bumper beam mounting kit

55.00 € + VAT (69.85 €)
In stock

Lazer Lamps Stay bar kit - Linear

from 11.00 € + VAT (13.97 €)
In stock

Lazer Lamps accessory - CAN contactless reader

99.00 € + VAT (125.73 €)
In stock

Specification

What's included:

• x1 Linear-18 Elite LED Lamp
• x1 Anti-Theft Side Mount (1127k)
• x1 Wiring and Installation Instructions


Technical data:

Voltage Range 9-32V
LED Life 50,000 hours
Weight 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 12150 Lm
Number of High Output LEDs 36
Power Consumption 126 Watts
Current Draw (at 14.4V) 8.8 Amps
Start-up Time * 100 ms
CERTIFICATION
High Beam ECE R112
ECE Reference 45
DIMENSIONS
Width 532 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
0.25 lx Line 975 metres
0.5 lx Line 690 metres
1 lx Line 488 metres
3 lx Line 282 metres
BEAM SPREAD
Horizontal 42 degree spread
Vertical 15 degree spread

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
