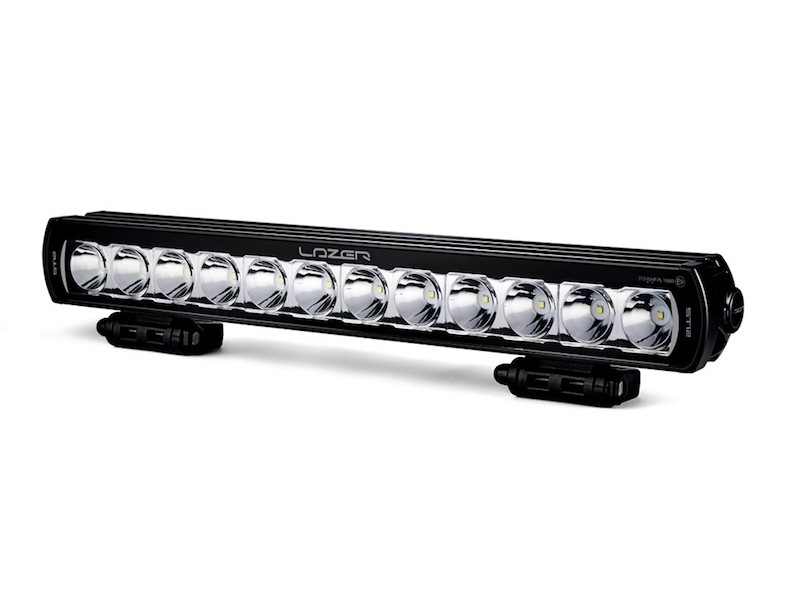

Lazer Lamps ST12 Evolution LED light - wide-angle

509.00 € + VAT ( 646.43 € )
Availability: In stock
Manufacturer:
Model: 0012-EVO-B
• 12x high density 11W LEDs (premium ‘bin’)
• Seamless, low profile design facilitates installation
• Dynamic drive modulation optimises light output to preserve longevity of the LEDs
• Ultra-reflective optics deliver ‘Drive’ beam pattern
• CAE optimised heatsink
• E-coat pre-treatment provides maximum corrosion resistance
• Fully ECE Approved for Road use
• 5 Year Warranty
• ‘Unbreakable’ polycarbonate lens with lifetime guarantee
• IP69K rating
• Comes as standard with 30cm cable, including pre-wired male & female connectors
• Made in Britain

Description

Responsive image• An exciting addition to the ST range of road-legal driving lights, the ST12 Evolution at just under 21” is the ideal choice for people looking for either: the ultimate road-legal lighting solution, in the form of a pair of lamps mounted across a roof bar, or customers looking for a single light bar option which alone delivers 1 lux to just under 500m. Despite its impressive range, the spread and even distribution of light in the short and mid-range make the ST12 the premium choice for everyday road and off-road applications.

• Upgraded high-density 11W LEDs are carefully selected for their high ‘bin’ rating, and in the case of the ST12 Evolution deliver 12,408 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.

• Performance aside, the ST12 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).

• With a seamless, low profile design, the new ST Evolution range is now not only easier to install, but is more resistant to dirt, snow and ice accumulations, and the contemporary styling is guaranteed to complement and enhance the appearance of modern vehicles.

Lazer Lamps Side mount clamp - ST/Triple-R

from 11.00 € + VAT (13.97 €)
In stock

Lazer Lamps Tube clamp pair - 76mm, black

45.00 € + VAT (57.15 €)
In stock

Lazer Lamps 2 Lamp link piece

11.90 € + VAT (15.11 €)
In stock

Lazer Lamps License plate mount

23.00 € + VAT (29.21 €)
In stock

Misutonida Tube clamp pair - black - 63mm

69.00 € + VAT (87.63 €)
Production time 4 weeks

Lazer Lamps Bumper beam mounting kit

55.00 € + VAT (69.85 €)
In stock

Lazer Lamps Stay bar kit - ST/Triple-R

from 11.00 € + VAT (13.97 €)
Production time 3 weeks

Lazer Lamps accessory - CAN contactless reader

99.00 € + VAT (125.73 €)
In stock

Specification

What's included:

• x1 ST12 Evolution LED Spotlight
• x2 Centre Mount (1114k)
• x1 Wiring and Installation Instructions


Technical data:

Voltage Range 9-32V
LED Life 50,000 hours
Weight 1634 gr
HIGH BEAM FUNCTION
Total Luminous Flux 12408 Lm
Number of High Output LEDs 12
Power Consumption 144 Watts
Current Draw (at 14.4V) 10.0 Amps
Start-up Time * 100 ms
CERTIFICATION
High Beam ECE R112
ECE Reference 25
DIMENSIONS
Width 524 mm
Depth 68 mm
Height 64 mm
PHOTOMETRIC DATA
0.25 lx Line 962 metres
0.5 lx Line 680 metres
1 lx Line 481 metres
3 lx Line 278 metres
BEAM SPREAD
Horizontal 28 degree spread
Vertical 24 degree spread

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
