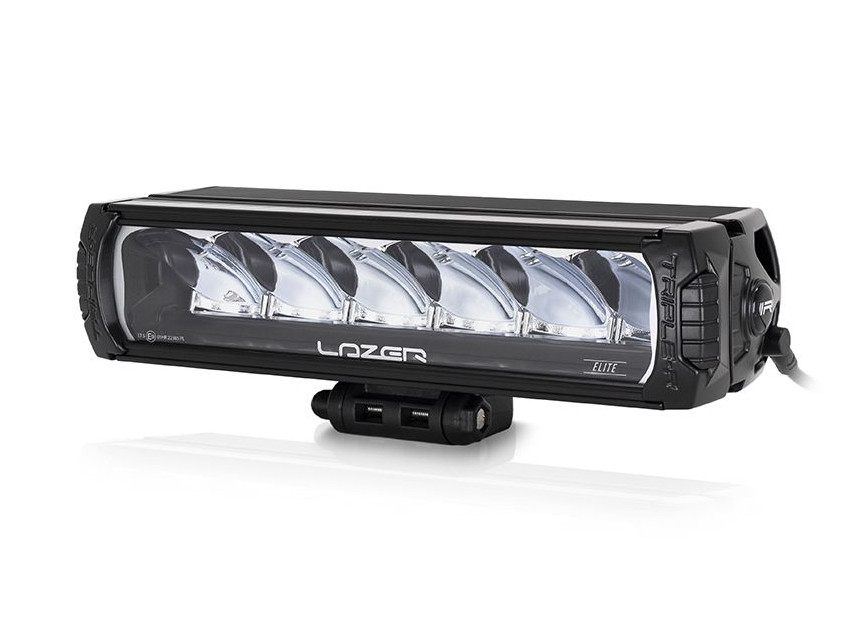

Lazer Lamps Triple-R 850 Elite LED light - long-range

389.00 € + VAT ( 494.03 € )
Availability: In stock
Manufacturer:
Model: 00R6-G2-EL-B
• Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
• Highly efficient LED technologies (upgraded for 2021)
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
• Contemporary lamp design
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatmnet and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP67 watertight
• 5-year warranty
• Supplied with pre-wired male/female 2-pin Superseal connectors
• Designed & manufactured in UK

Lazer Lamps Mount clamp

from 11.00 € + VAT (13.97 €)
Production time 3 weeks

Lazer Lamps Triple-R accessory

19.00 € + VAT (24.13 €)
Production time 3 weeks

Lazer Lamps Tube clamp pair - 76mm, black

45.00 € + VAT (57.15 €)
In stock

Lazer Lamps 2 Lamp link piece

11.90 € + VAT (15.11 €)
In stock

Lazer Lamps License plate mount

23.00 € + VAT (29.21 €)
In stock

Lazer Lamps Stay bar kit - ST/Triple-R

from 11.00 € + VAT (13.97 €)
Production time 3 weeks

Lazer Lamps accessory - CAN contactless reader

99.00 € + VAT (125.73 €)
In stock

Specification

What's included:

• x1 Triple-R 850 Elite LED Lamp
• x1 Centre Mount (1114k)
• x1 Wiring and Installation Instructions


Technical data: E-Boost E-Mark Mode

Voltage Range 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 1.34 kg 1.34 kg
High beam function
Total Luminous Flux 8068 Lm 2017 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 6 6
Power Consumption 73 Watts 18 Watts
Current Draw (at 14.4V) 5.1 Amps 1.3 Amps
Start-up Time * 100 ms 100 ms
Certification
High Beam N/A ECE R112
E-Mark Ref N/A 17.5
Dimensions
Width 322 mm 322 mm
Depth 105 mm 105 mm
Height 73 mm 73 mm
Photometric data
0.25 lx Line 1162 metres 520 metres
0.5 lx Line 822 metres 367 metres
1 lx Line 581 metres 260 metres
3 lx Line 335 metres 150 metres
Beam spread
Horizontal 42 degree spread 42 degree spread
Vertical 13 degree spread 13 degree spread

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
